Imagine a Melbourne homeowner receiving progress photos of a new granny flat being assembled in a factory.
The walls are straight, the roof trusses are in place and diagonal steel members are visible throughout the frame. It looks organised and substantial, so the natural question is: does this mean the structure is ready to meet Victorian requirements?
The photos are useful, but they are not proof of compliance.
They appear to show a light-gauge steel framing system at an early construction stage. Whether that system is suitable for a particular Victorian property depends on the approved engineering, building permit, inspections, transport design, foundations and final site connections.

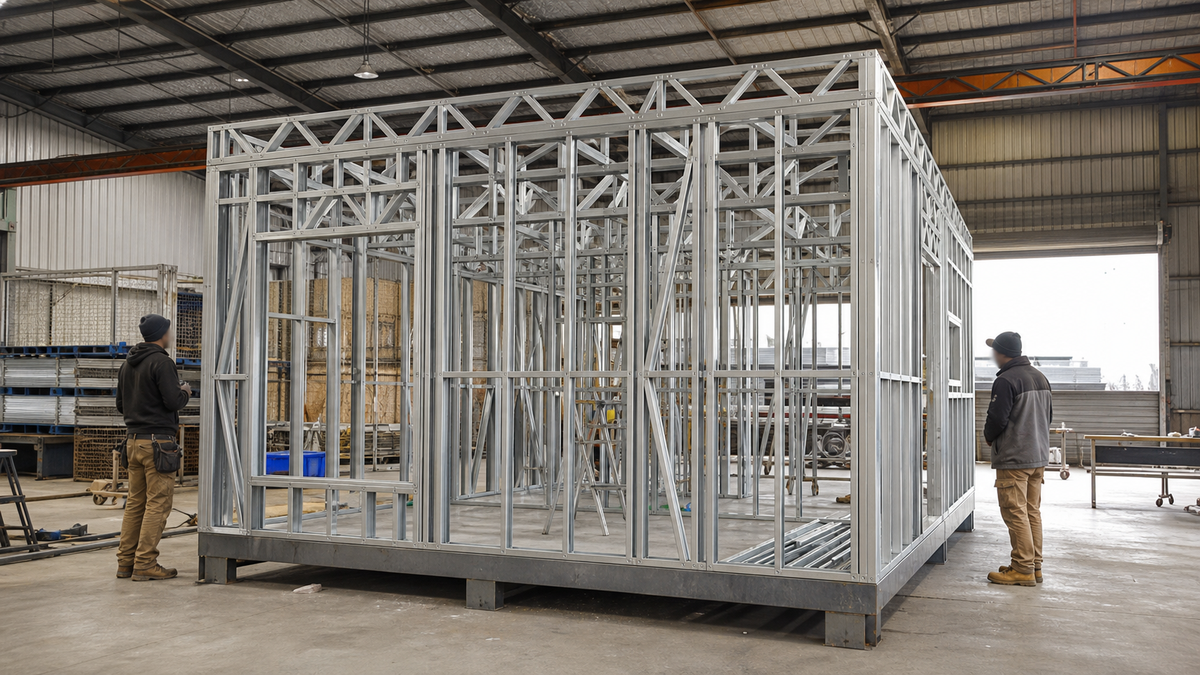

What the progress photos show
The supplied images show several recognisable parts of a light-gauge steel structure.
Wall studs and tracks
Vertical steel studs form the wall framework. Horizontal tracks hold the top and bottom of those studs in position.
The spacing and profile of each member cannot be confirmed from a photo. These must match the engineer's design and approved documentation.
Bracing and load paths
Diagonal members can be seen across a number of wall panels. Bracing helps transfer lateral forces through the structure, but its adequacy depends on the complete load path, connection details and site design.
A brace that looks substantial may still be in the wrong position or use the wrong fasteners. Visual appearance alone cannot establish capacity.
Door and window openings
The frame includes larger openings with additional members around some heads and sides. Openings interrupt ordinary stud spacing, so the approved design needs to explain how loads are carried around them.
The homeowner should be able to match each opening with the architectural plans and structural frame drawings.
Roof trusses and internal partitions
Light steel trusses span across the top of the module, while internal framing defines rooms and circulation.
The trusses, supports, tie-downs and wall connections work as one system. Checking a single member without the rest of the structure gives an incomplete picture.
Steel framing is allowed, but it must follow an accepted structural pathway
Victoria applies the National Construction Code together with Victorian building legislation and regulations.
NCC Volume Two covers Class 1 residential buildings. Planning Victoria's current small second dwelling framework identifies a qualifying small second dwelling as a Class 1a building with a gross floor area of 60 square metres or less on the same allotment as an existing single dwelling.
For steel framing, NCC Part H1 lists recognised structural design pathways that include the NASH Standard for Residential and Low-Rise Steel Framing, AS 4100 for steel structures and AS/NZS 4600 for cold-formed steel structures.
That does not mean every steel frame automatically complies with those documents. The selected pathway, engineering calculations, member schedule, connections and construction must be consistent with the building permit.
Factory construction does not replace a Victorian building permit
Planning Victoria states that a small second home always requires a building permit.
A planning permit is not required in many ordinary cases, but that is not a universal exemption. The zone, overlays, lot size, flooding, environmental controls and other property conditions can change the pathway. The Granny Flat Rules Victoria guide explains the broader planning context.
The relevant building surveyor assesses the building permit application against the Building Act, Building Regulations and NCC. The building permit should identify the approved plans and the mandatory inspection stages.
The Council Approval Guide explains why planning permission and building approval answer different questions.
What documentation should sit behind the frame?
Before treating a factory-built frame as ready for a Victorian project, the project team should be able to identify:
- permit-approved architectural drawings
- structural engineering computations and drawings
- wall, floor and roof member schedules
- bracing, tie-down and connection details
- fastener specifications
- relevant material and fabrication certificates
- site soil and foundation information
- transport, lifting and temporary-bracing requirements
- the inspection plan agreed with the relevant building surveyor
- documentation required before the occupancy permit
The exact list depends on the design and permit. A photograph or supplier brochure cannot replace these records.
The How We Build page shows how design, approvals, manufacture, site work and handover need to remain connected.
Off-site frames need an inspection plan before they are covered
Victoria's Building and Plumbing Commission explains that the relevant building surveyor determines the required inspections and lists them on the building permit.
For a conventional site-built home, the frame can usually be viewed before cladding and internal linings conceal it. A factory-built module creates an extra coordination question: which parts must be inspected in the factory, which can be supported by engineering certification, and which will be inspected after installation?
That sequence should be agreed before the frame is covered. Waiting until the completed module reaches the backyard may leave important connections hidden.
The statutory inspection does not replace the builder's own quality control. Consumer Affairs Victoria also notes that the building surveyor checks minimum building-regulation compliance, not every contractual finish or quality promise.
At completion, the relevant building surveyor may require certificates or statements from the practitioners involved. A new home must not be occupied until the required occupancy permit has been issued.
The foundation and site connection are part of the structure
The photos show the module above a steel perimeter base, but they do not show the final Victorian site or foundation system.
The completed load path must continue from the roof and walls through the floor or base frame, anchors and footings into the ground. Soil conditions, wind classification, slope, drainage, flood risk and bushfire conditions may affect that design.
Site access also matters. Transporting and lifting a completed module can create temporary loads that differ from normal occupancy loads. The module needs an engineered lifting and installation method, together with practical access to the backyard.
The Land Eligibility Check identifies the property constraints that should be reviewed before manufacture is locked in.
Steel does not remove thermal, moisture or fire responsibilities
The frame is only one layer of the building.
The completed wall and roof systems still need appropriate insulation, thermal-break details, condensation management, weatherproofing, cladding, flashings and fire performance. These elements must work with the steel frame rather than being considered after fabrication.
This is also why a low frame-only price should not be treated as the complete project cost. Foundations, transport, crane access, services, approvals, external envelope and site finishing can materially change the budget. The Granny Flat Cost Victoria guide explains what belongs in the total.
A practical homeowner checklist
Before approving manufacture or accepting a frame-stage update, ask:
- Which engineer designed and certified the frame for the actual Victorian site?
- Which NCC compliance pathway and referenced structural documents are being used?
- Do the member labels, openings and bracing match the approved drawings?
- What inspections are listed on the building permit?
- How will concealed factory work be inspected or certified?
- Who designed the foundations, anchors, transport and lifting method?
- Which certificates must be supplied before occupancy?
Clear answers matter more than whether the frame simply looks strong.
Start with the property, not the factory frame
A well-coordinated light-gauge steel system can be a practical way to construct a compact dwelling. It still needs to be designed for the land, approved before building work begins, inspected at the required stages and connected correctly on site.
MPLUS can first review the address for obvious planning controls, usable backyard space, access and site constraints. Check My Land before committing a factory-built structure to a property that has not been assessed.
Sources checked
- Planning Victoria, Small second homes
- Planning Victoria, Small second dwellings planning and building framework
- Building and Plumbing Commission, Appointing a building surveyor
- Building and Plumbing Commission, Mandatory notifications and inspections
- Building and Plumbing Commission, At the end of your building project
- Consumer Affairs Victoria, Building plans and permits
- National Construction Code, Part H1 Structure
